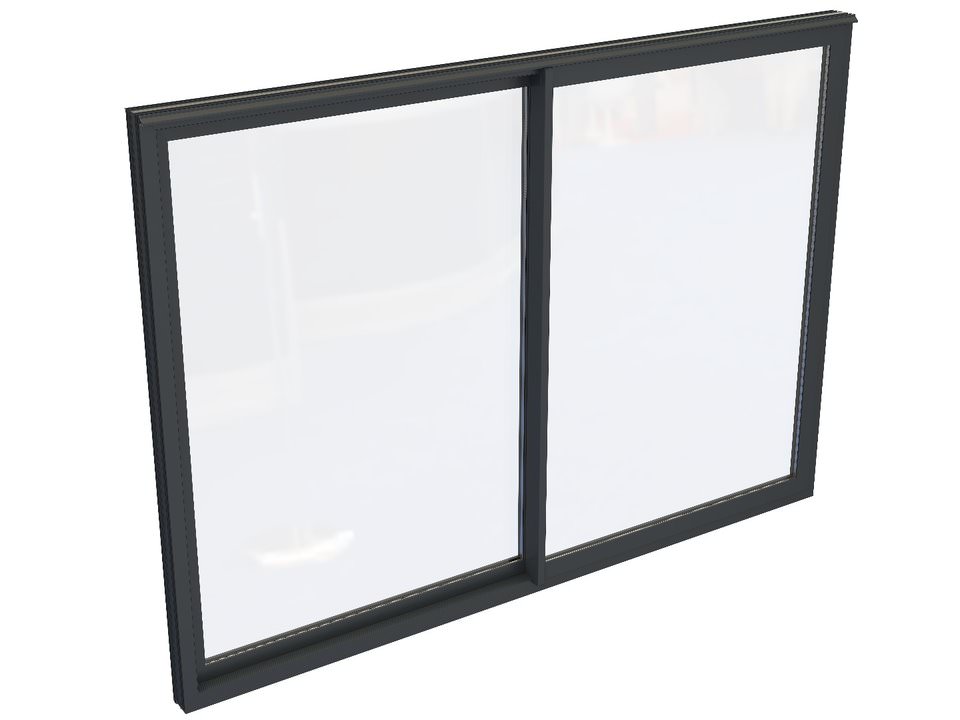

Visoglide Plus offers the same contemporary styling and robust performance associated with the system whilst delivering superior thermal performance.
This adaptable system is suitable for use as either sliding commercial entrances where large opening apertures are required, or as dynamic residential sliding doors that maximise light and give stunning unimpeded views. Visoglide Plus profiles have been designed to improve both strength and weather resistance. All main sections feature an extended polyamide thermal break that allows Visoglide Plus to achieve a U Value of 1.6 W/m²K when installed with a suitable sealed unit.
Visoglide Plus doors are available in both single and dual colour in wide choice of standard and non-standard finishes including Smart’s unique Sensations range of textured colours. The system is also suitable for use with auto slide opening mechanisms (sold seperately).
|U Value||1.6 W/m²K based on using a sealed unit with 1.0 W/m²K centre pane|
|Air||Class 3, 600Pa|
|Water||Class 7a, 300Pa|
|Wind||Class AE, 2400Pa|
|Document L Compliant||Yes|
|Sliding Door Max Width (mm)||Within height & weight limitations|
|Sliding Door Max Height (mm)||2500mm (Sash)|
|Sliding Door Max Weight (kg)||200kg|
|Glazing (mm)||38mm double or triple glazed units|
|Frame Depth (mm)||100mm|
|Typical Sightlines (mm)||117mm (OF) 83mm (Interlock)|
