Visofold 6000


A high-quality, high-performance slide and fold door. Featuring slim profiles, the door provides a contemporary, elegant solution for both residential and commercial applications.

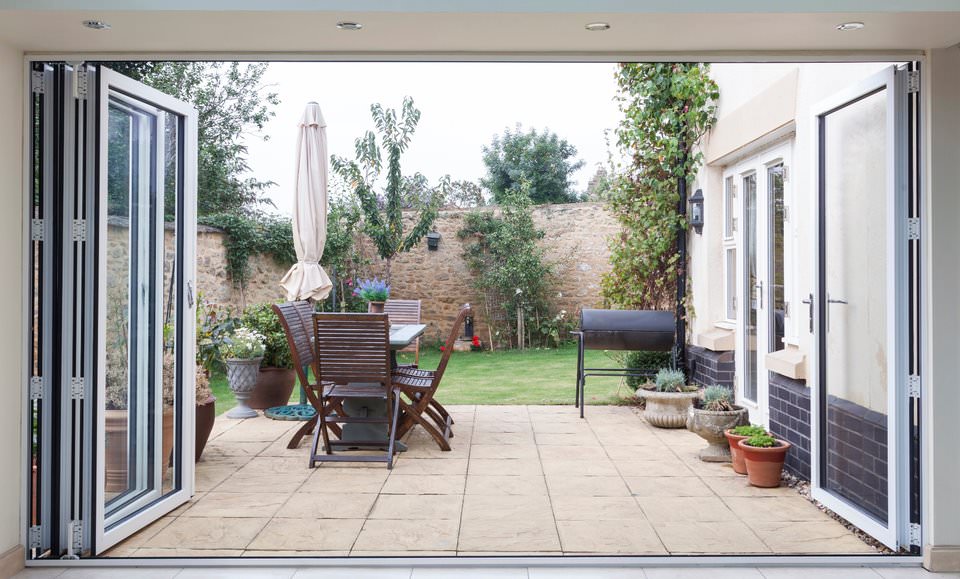

Visofold 6000’s flexibility makes it suitable for both commercial and residential projects where large opening apertures are required, with the system maximising light and space to give unimpeded views. This highly-versatile, easy-to-operate system is the perfect option for even the largest project, capable of opening up an entire wall, yet presenting a contemporary, elegant glazed façade when closed.

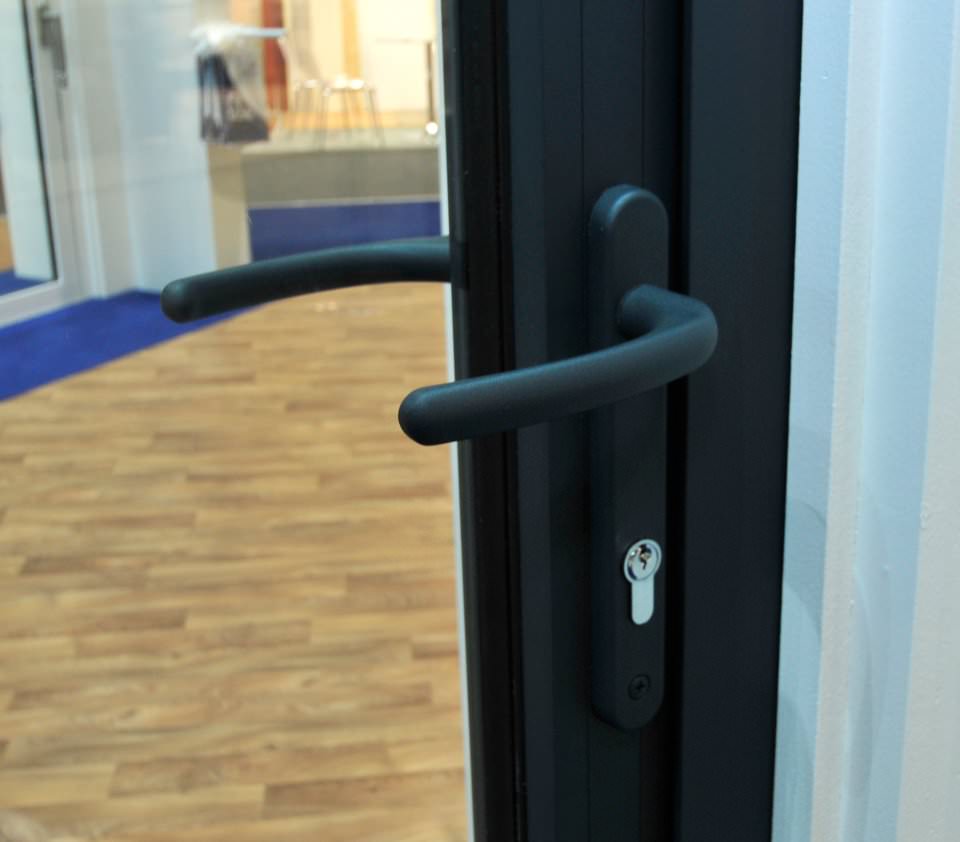

With high-security glazing, robust locking mechanisms (including multi-point locks on the main opening sashes, and shoot-bolts on the floating mullions), an unrivalled colour range and the option of colour-matched accessories, the system can be tailored to meet each project’s specific requirements.

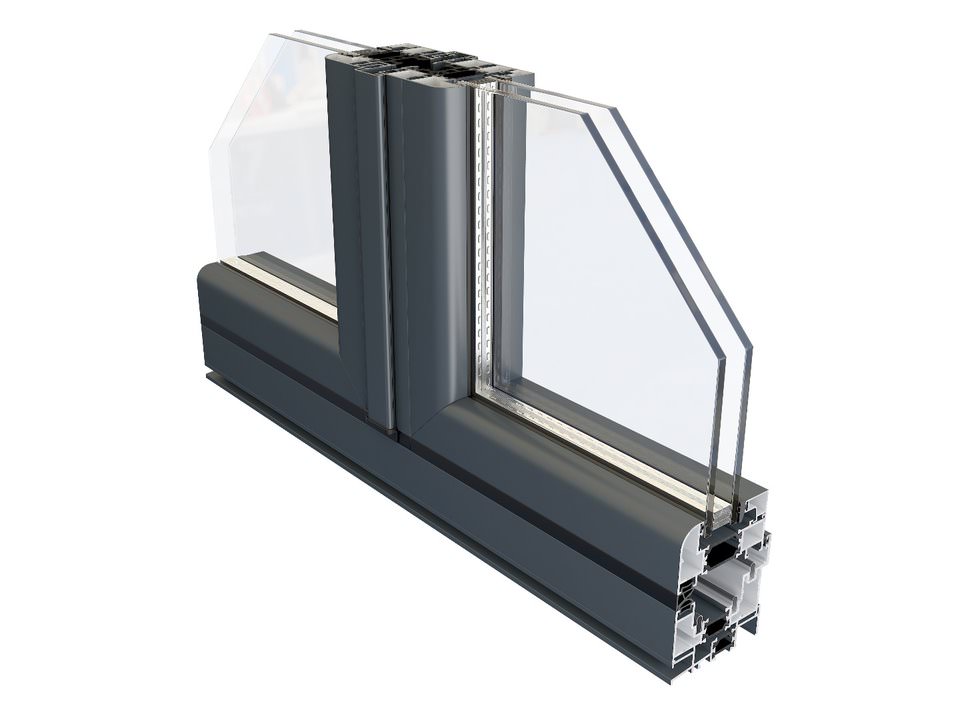

Delivering the perfect combination of strength and performance, Visofold 6000 profiles feature a polyamide thermal break that enhances the system’s thermal performance as well as resistance. Fully compliant with the requirements of Building Regulations Document L 2010, the doors have the option of either low thresholds for unimpeded, easy access, or rebated thresholds that offer improved weather resistance.

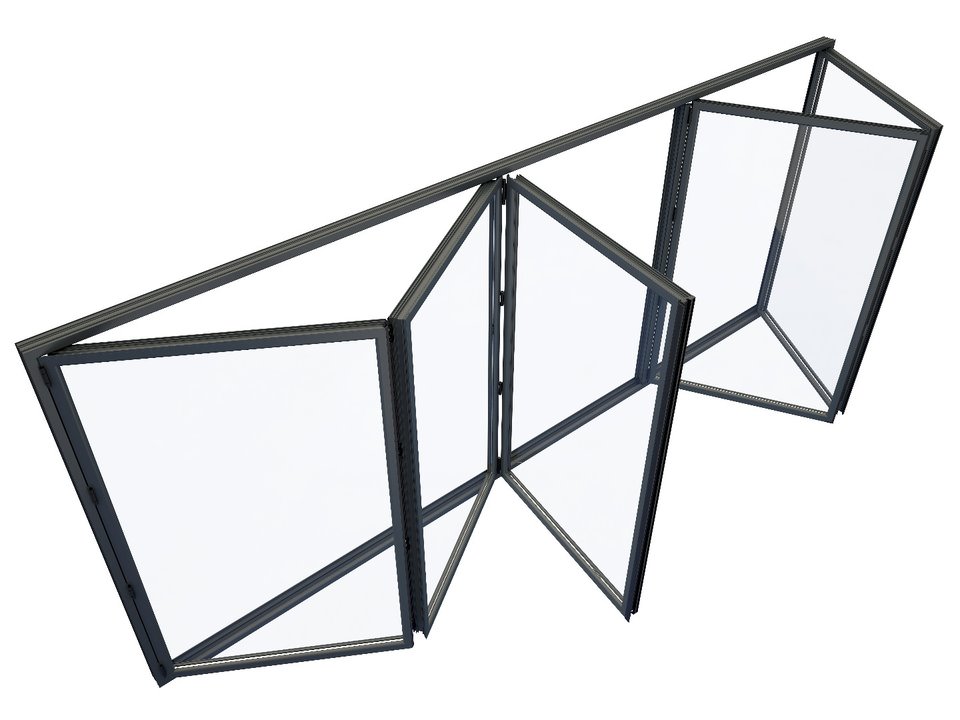

The system features a choice of internally or externally folding sashes, which when open, sit flush to the frame. Sashes are hung from a floating mullion and slide on a recessed bottom roller and top guide, which allow ultra-slim profiles, smooth operation and robust security.


BrandVisofold
MaterialAluminium Polyamide
Dual ColourYes
Thermally BrokenYes
NBS AvailableYes
U Value1.5W/m²K using 1.0 W/m²K centre pane
AirClass 2, 450Pa
WaterClass 8A, 450Pa
WindClass 3, 1200Pa
Document L CompliantYes
BS 6375-1:2009Yes
Slide Folding Door Max Width (mm)1000mm
Slide Folding Door Max Height (mm)2200mm
Slide Folding Door Max Weight (kg)100kg
Glazing (mm)24mm, 28mm, 32mm or 40mm double or triple glazed units
Frame Depth (mm)76mm or 82mm
Typical Sightlines (mm)94mm
