Visofold 1000

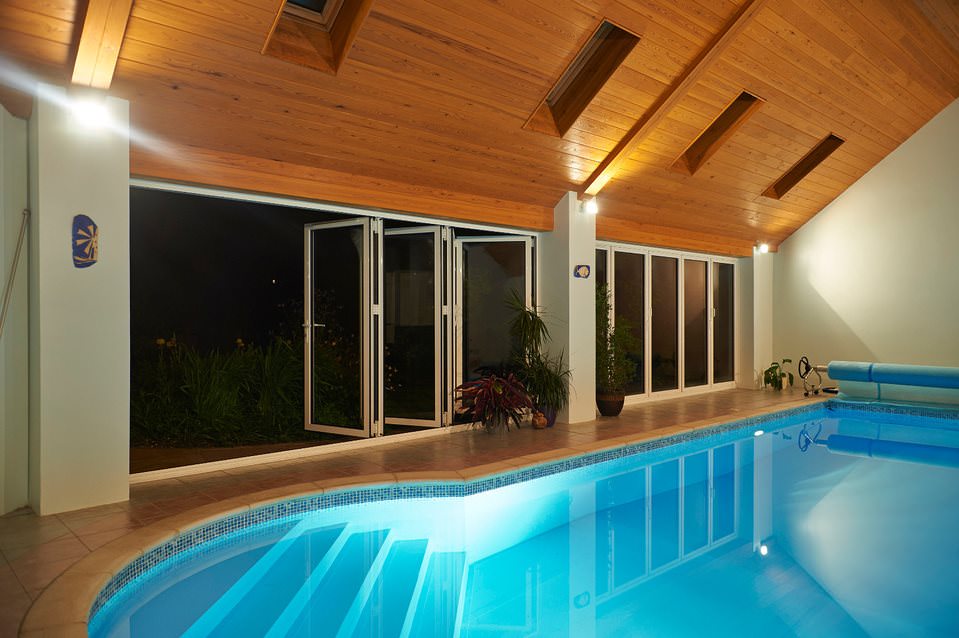

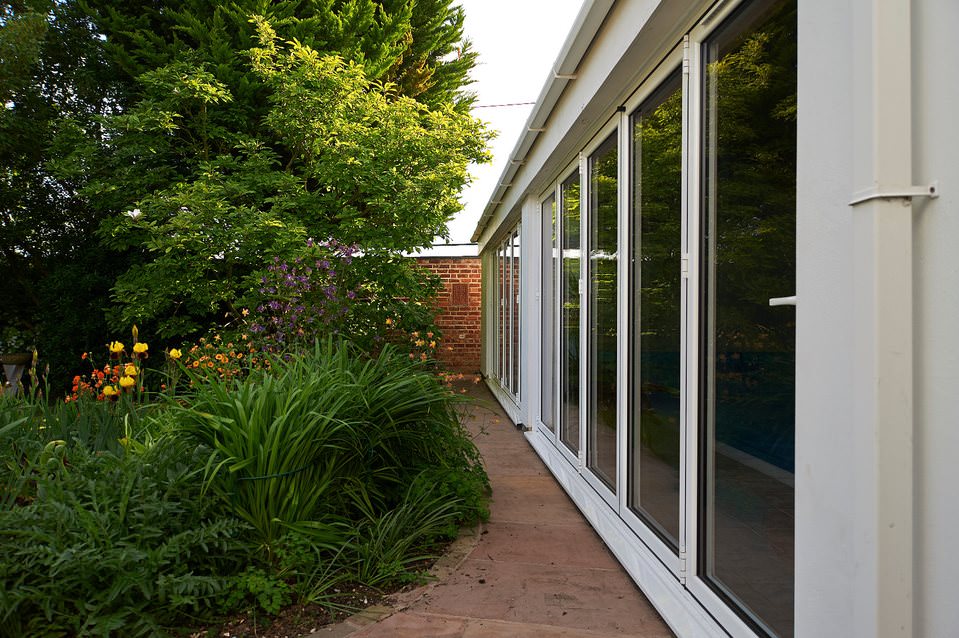

The Visofold series of slide-folding doors offer impressive opening apertures that can unite internal and external areas creating unique living and social areas. Suitable for both residential and commercial applications.

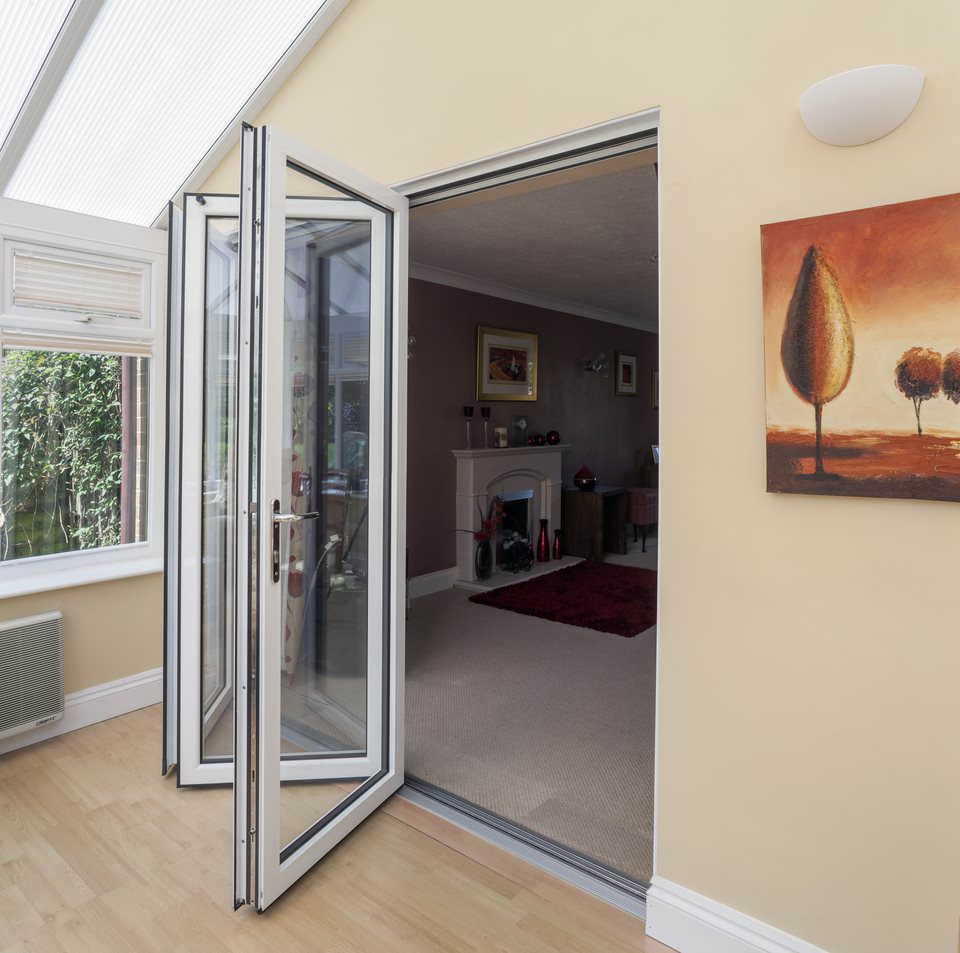

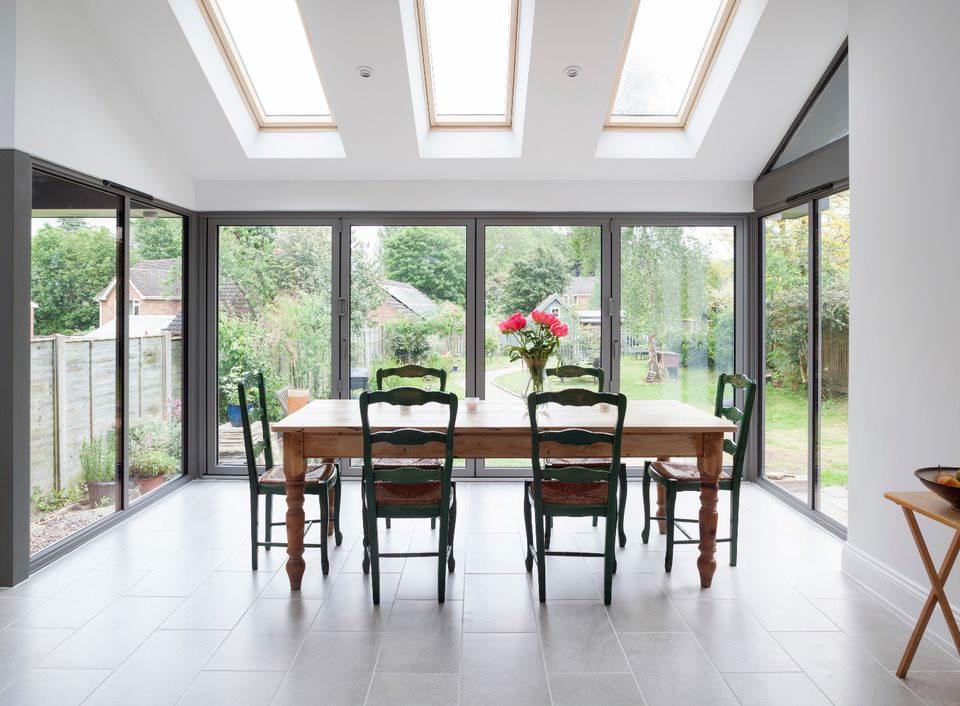

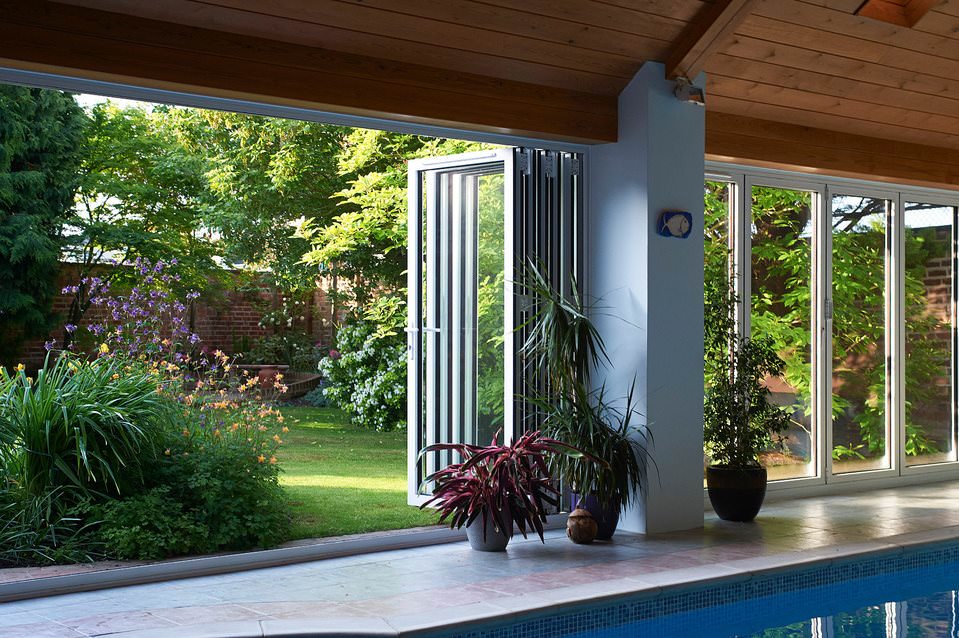

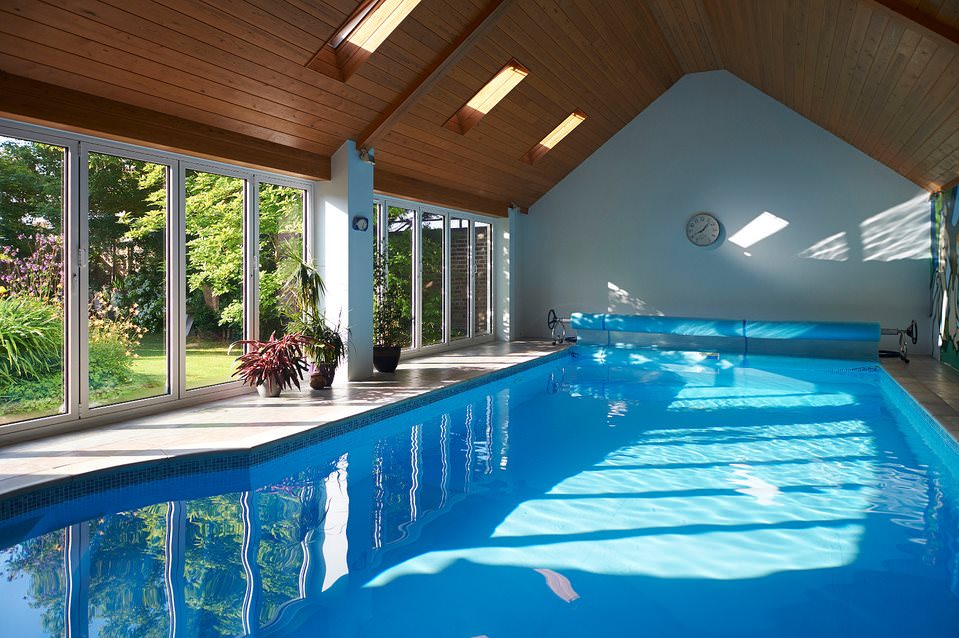

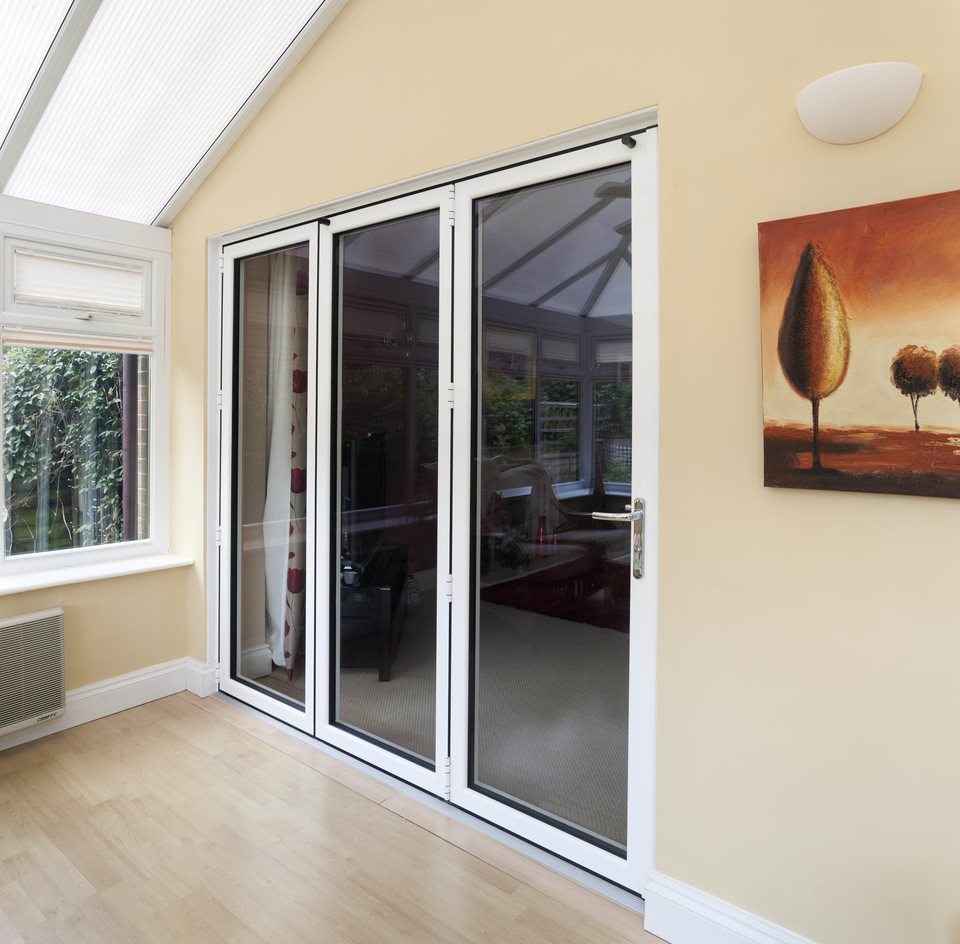

Visofold can be used in domestic applications as either an alternative to sliding doors, or to open up an entire wall as part of a conservatory; the system will make the most of a beautiful view or bring a garden into the home.

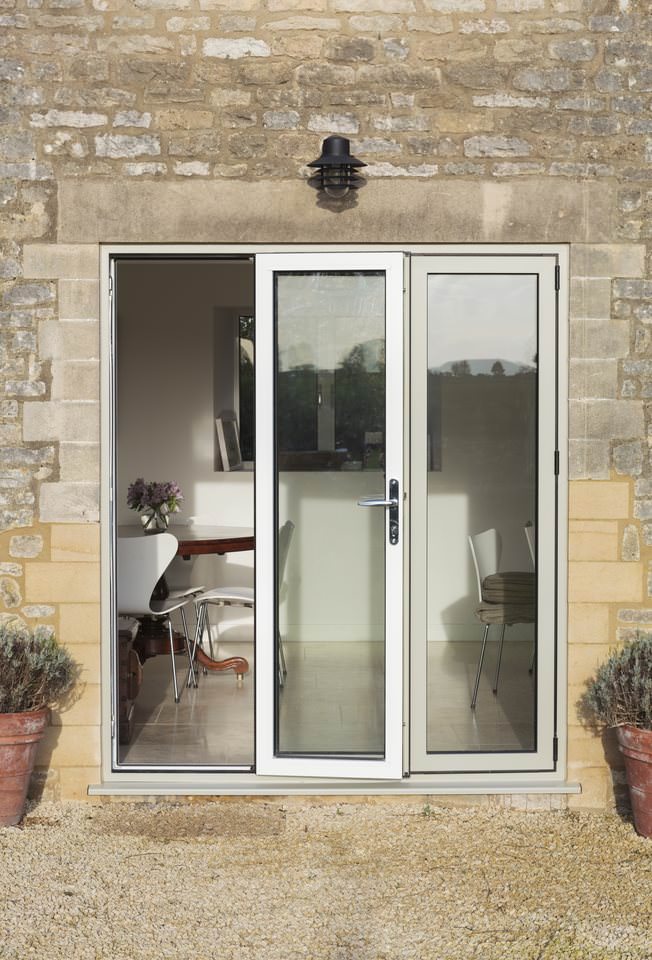

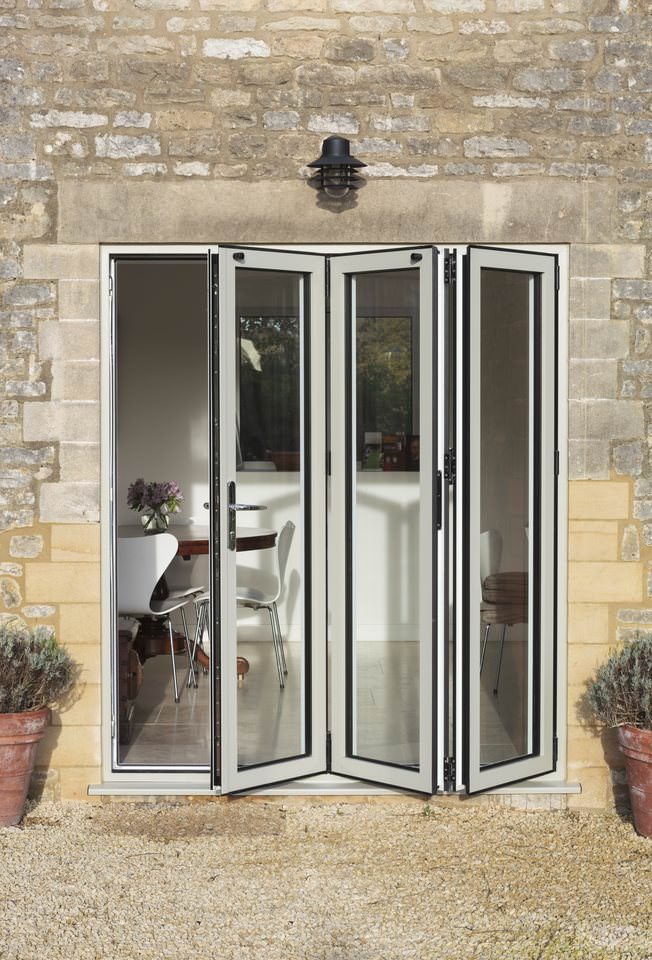

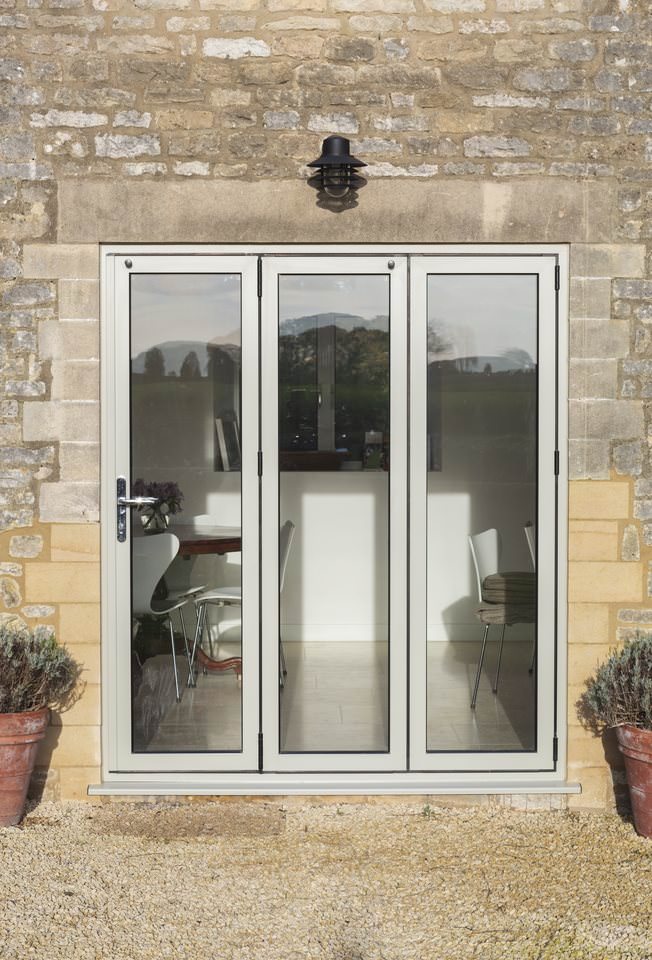

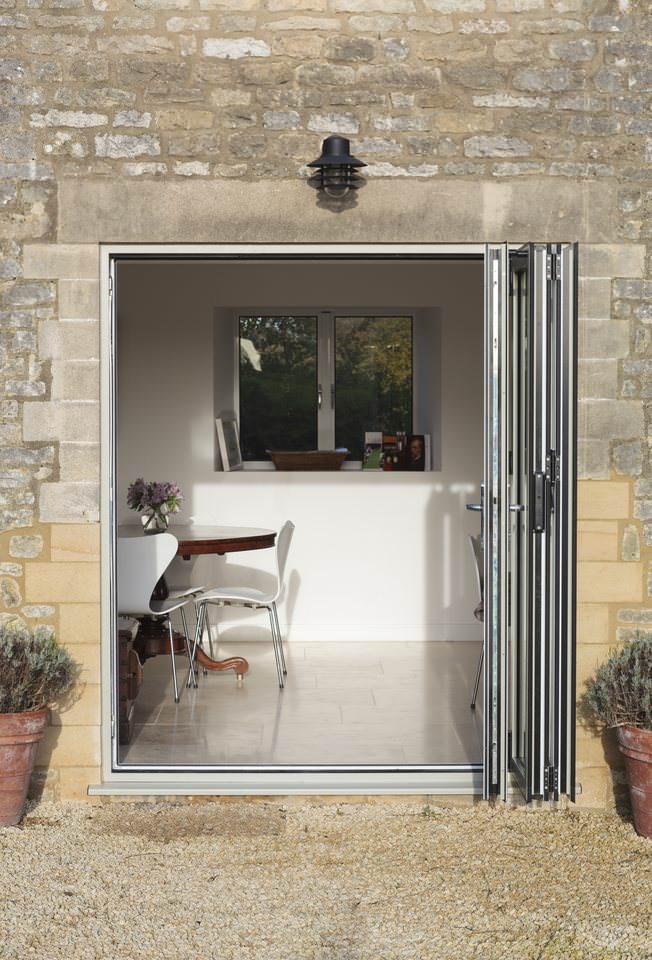

Used commercially in a bar, café or restaurant, Visofold can create a glazed screen that allows in the maximum ingress of light in inclement weather, and will also easily glide to open up an entire wall in warmer weather. Visofold doors offer a choice of opening configurations to suit any application. Choose to fold the sashes internally or externally, place the opening at the side so the sashes all fold one way, at one end, to create a single entrance door for easy access, or in the middle to give the option of a double door.

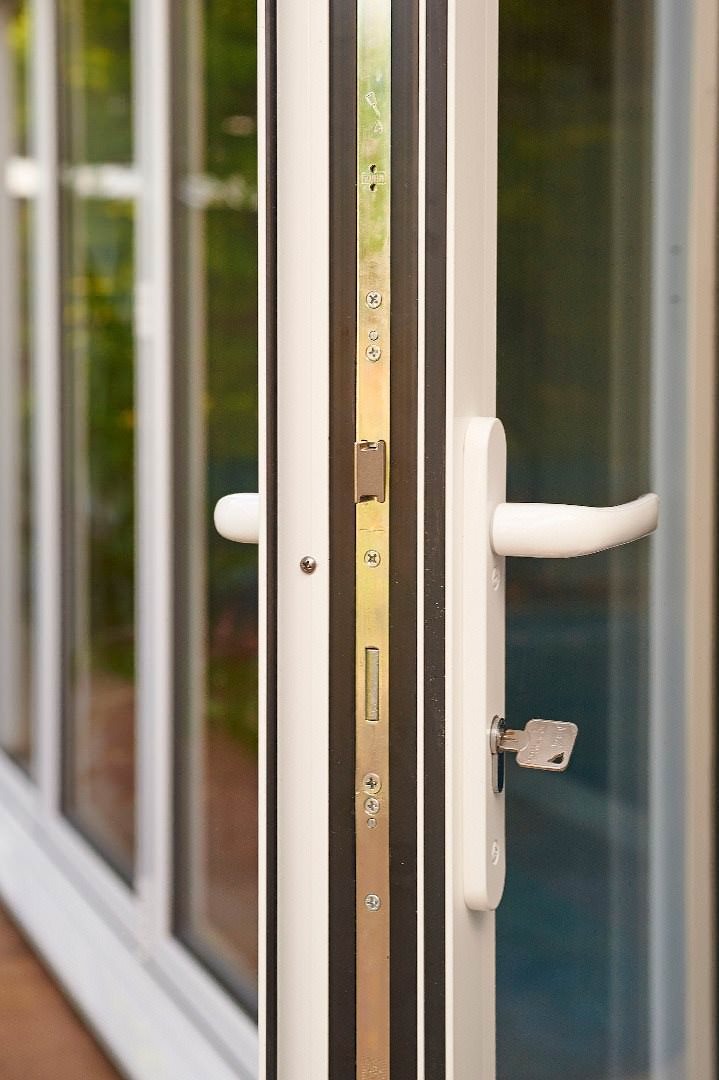

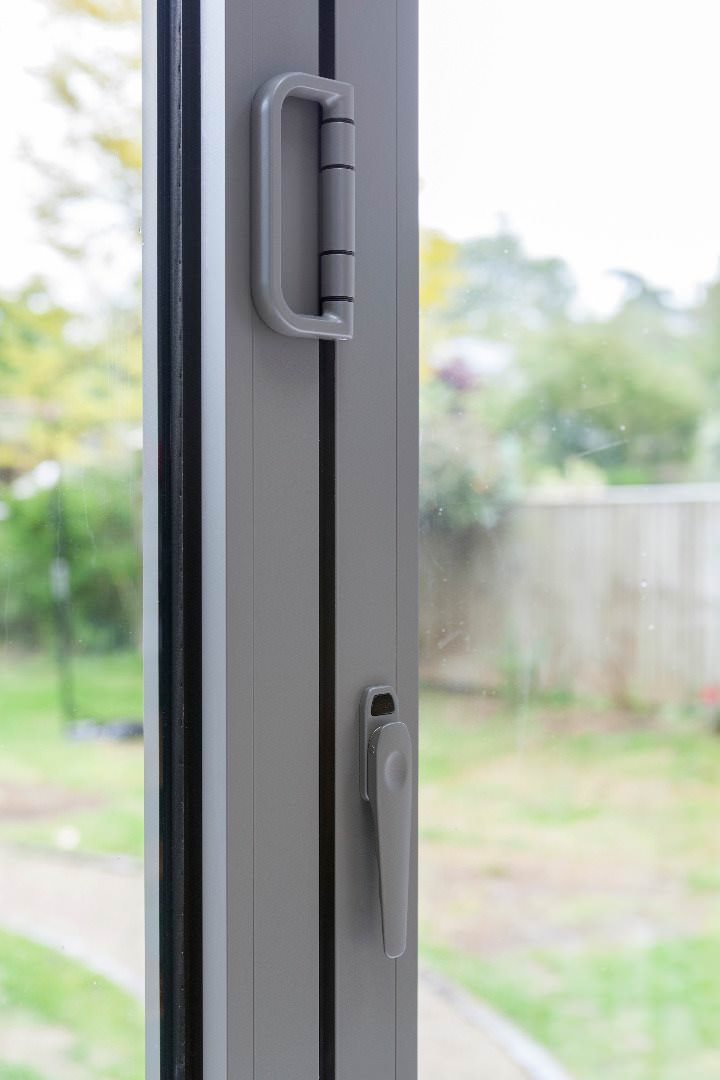

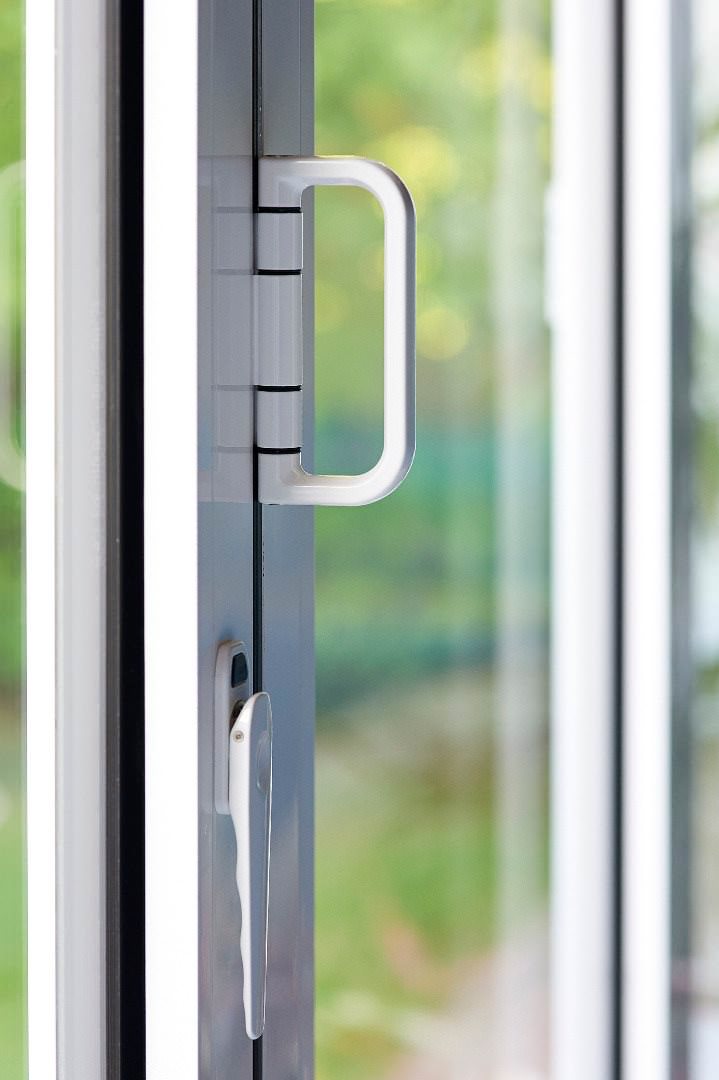

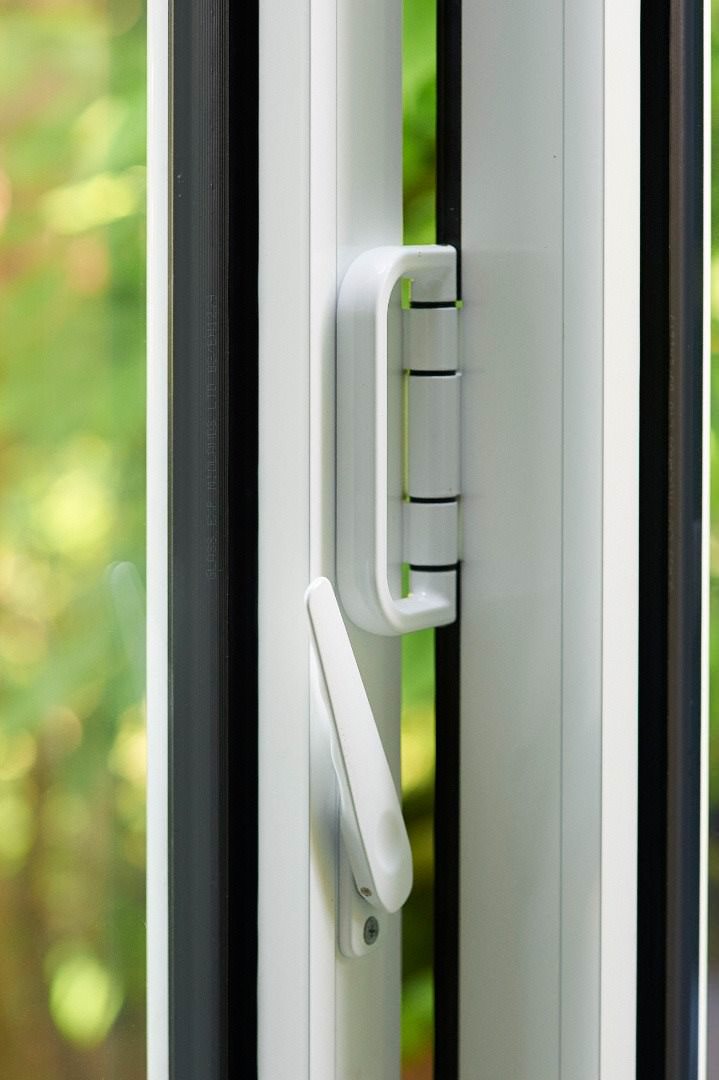

All Visofold profiles feature a polyamide thermal break that enhances the thermal performance of the profile and improves the overall U-Value. Profiles feature EPDM high quality gaskets and weather brushes to aid weather resistance. Visofold complies with the requirements of Building Regulations Document L 2010. Security is assured by multi-point lock mechanisms on main opening sashes, and shoot-bolt locking on floating mullions.

All Visofold doors have the option of either low thresholds for unimpeded, easy access, or rebated thresholds that offer improved weather resistance. Visofold doors are available in a choice of standard or non-standard colours, including metallic, wood-structure, dual colour and Smart’s unique Sensations range of textured finishes.


BrandVisofold
MaterialAluminium Polyamide
Dual ColourYes
Thermally BrokenYes
NBS AvailableYes
U Value1.5W/m²K using 1.0 W/m²K centre pane
AirClass 4, 600Pa
WaterClass E, 750Pa
WindClass 4, 1800Pa
Document L CompliantYes
BS 6375-1:2009Yes
PAS 24:2012Yes
Fixed Max Width (mm)1200mm (per sash)
Fixed Max Height (mm)2500mm (per sash)
Fixed Max Weight (kg)100kg (per sash)
Slide Folding Door Max Width (mm)1200mm (per sash)
Slide Folding Door Max Height (mm)2500mm (per sash)
Slide Folding Door Max Weight (kg)100kg
Glazing (mm)24mm, 28mm, 32mm, 34mm, 36mm double or triple glazed units
Frame Depth (mm)70mm
Typical Sightlines (mm)132mm
